Product Description

 CYLINDRICAL LOCKSETS
Introduction
* Cylindrical lockset is an ideal economical choice for standard residential use.
* Guaranteed for over 100,000 life cycles.
* Can be keyed alike to deadbolt Series to maximize security.
* Can be keyed alike in a group to enhance convenience.
* Can be master keyed in a simple combination for family and facility use.
* Solid steel chassis and latch case,zinc plated for corrosion resistance.
* Exposed trim is made of either wrought stainless steel or brass.
* 5-pin tumbler cylinder, brass plug with 2 nickel-plated brass keys.
    Features
   Latch Bolt
* 1/2"(12mm)latch extension.
* Dead locking for keyed functions.
* 2-3/4"(70mm) curved lip strike as standard. 2-1/4"(57mm) strike available upon request.
   Backset
* Standard 2-3/8"(60mm).
* 2-3/4"(70mm) and  adjustable latch (2-3/8" or 2-3/4") also available upon request.
* Note:Backset is the distance between door hole center and door edge.
  Handing
* Fully reversible for either  right or left  hand door.

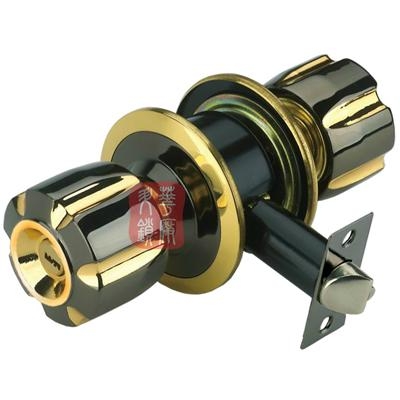

Product Image
